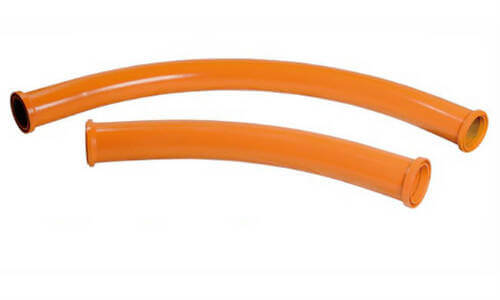

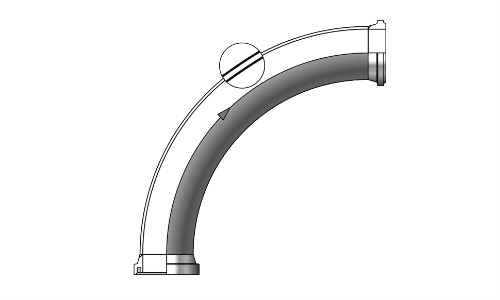

SCHWING M/F ELBOW

Type Single-Wall
Heat Treatment Induction Hardened or Non-heat Treated
Hardness Up to 50HRc for heat treated
Max Working Pressure 85 bar (1233 psi) Metric, 130 bar (1885 psi)
Weld Ends M/F
SCH 5.5 R1000 90D -M/F
SCH 5.5 R1000 45D -M/F
SCH 5.5 R1000 30D -M/F
SCH 5.5 R1000 15D -M/F
SCH 5.5 R500 90D -M/F
SCH 5.5 R500 45D -M/F
SCH 5.5 R500 30D -M/F
SCH 5.5 R500 15D -M/F
Part Number ID Degree of Angle Center Line Radius Weld Ends
(in/mm) (in/mm) M/F
SCH125100090 5.0/125 90 39/1000 M/F
SCH125100045 5.0/125 45 39/1000 M/F
SCH125100030 5.0/125 30 39/1000 M/F
SCH125100015 5.0/125 15 39/1000 M/F
SCH12550090 5.0/125 90 19.7/500 M/F
SCH12550045 5.0/125 45 19.7/500 M/F
SCH12550030 5.0/125 30 19.7/500 M/F
SCH12550015 5.0/125 15 19.7/500 M/F
  • M/F elbow
  • M/F Reducers
  • Wedge Couplings
  • D Gaskets

1. Please confirm the flange size before placing the order.
2. Please pay attention to the thickness of the pipe
2. Please tell us the specific purchase quantity
