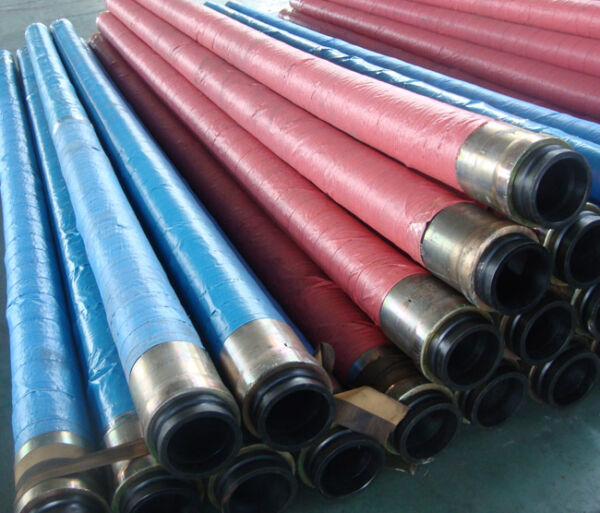

concrete pump delivery pipe

Concrete pump delivery hose with steel wire,we can supply many kinds quality rubber hose for clients ,steel wire delivery hose,fabric kind delivery hose,reducer hose and etc.

Features: Specially developed premium hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete, cement and plaster. Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.

Temperature range: -35°C / +80°C

Safety factor 2:1

Hose Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant

Reinforcement: Steel cord wrapped

Cover: SBR, black, antistatic, cloth impression

Type: 2 layers steel wire or 4 layers steel wire

working pressure: 85bar or 1232PSI

Length:1m-20m

Dimensions: DN100, DN125, DN150, 4”, 5″, 6”

Flanges: Single end, or double ends

Coupling: Painted or Galvanized.

ID(MM):127±1.0
OD(MM):158±2.0
Length:1000mm,2000mm,3000mm,and others
Weight:12.8kg/m
Bend Radius:360mm

Concrete Pump Delivery Hose

ID
(mm)		 OD
(mm)		 Working
Pressure
(bar)		 Burst
Pressure
(bar)		 Bend
Radius
(mm)		 Weight
(Kg/m)
51 68±1.5 85 200 200 2.8
64 85±1.5 85 200 250 4.0
76 102±1.5 85 200 270 6.0
89 116±1.5 85 200 290 7.5
102 130±1.75 85 200 300 9.2
115 143±2 85 200 320 10.5
127 158±2 85 200 360 11.7
152 186±2 85 200 570 17.0
