Project Description

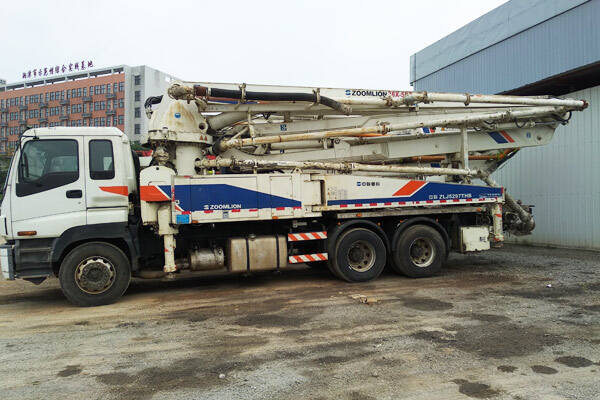

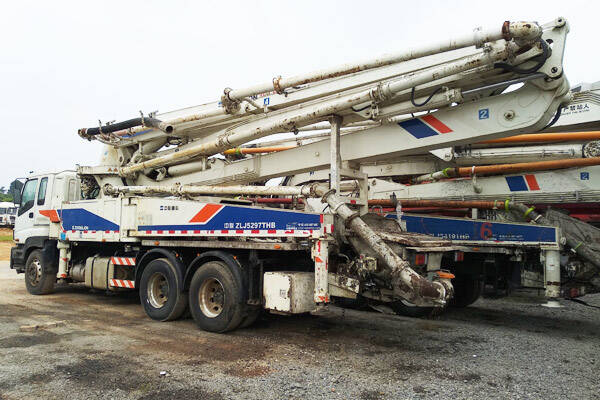

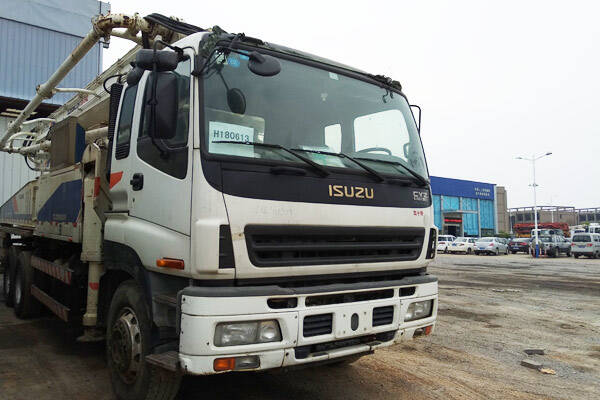

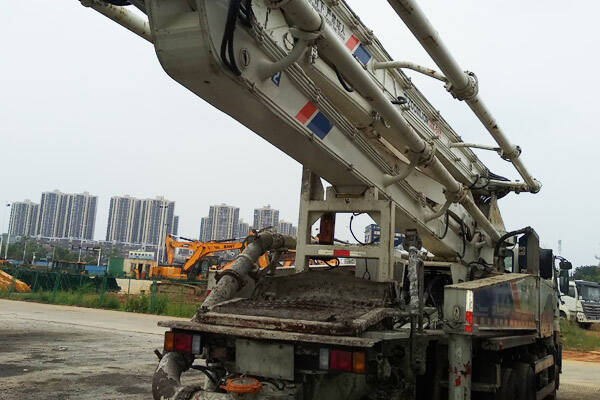

Used Zoomlion 38 Meters Concrete Boom Pump
Product Description of Used Zoomlion 38m Concrete Pump
- Compact in design, the 38m pump mounted on a 3-axle truck.
- Efficient pump unit, ideal for long time use.
- Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
- One side lateral support enables to work in narrow sites.
- The controller is designed for heavy-duty use, with a monitor which monitors the truck mounted concrete pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
- Various configurations and high-quality components.
- Damping technology boom.
- Boom stabilization control.
- Multilingual man-machine interface system.
- PWM+CAN dual communication mode remote control.
Technical Parameter of Used Zoomlion 38 Meters Concrete Boom Pump
| Technical Parameter | ||
|---|---|---|
| Brand | Zoomlion | |
| Chassis Brand | Isuzu | |
| Model | ZLJ5297THB 38X-5RZ | |
| Released date | 2012 | |
| Chassis | Cabin | Isuzu CYZ51Q |
| Drive mode | 6*4 | |
| Engine model | Isuzu 6WF1A | |
| Emission standard | Euro3/14.256L | |
| Max output power(kW/rpm) | 265/1800 | |
| Max torque(N·m) | 1422/1100 | |
| Rear axle: ratio/loading capacity | 24.8 tons | |
| Braking system | Full air, dual circuit | |
| Wheelbase(mm) | 4595+1310 | |
| Tire | 295/80R22.5 | |
| GVW (Kg) | 28190 | |
| Overall dimension(mm) | 11800*2500*3990 | |
| Boom&Pump system | Vertical reach | 38m/5 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 140/90m³/h | |
| Pressure (Low/High-pressure) | 7/11Mpa |
