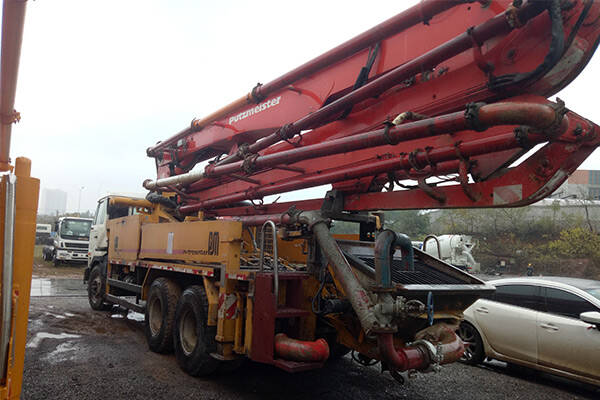

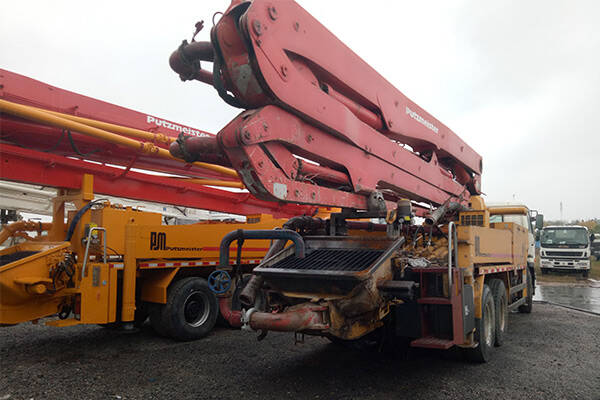

Used Putzmeister 36M Concrete Boom Pump
Product description of Used Putzmeister Concrete Pump 738:

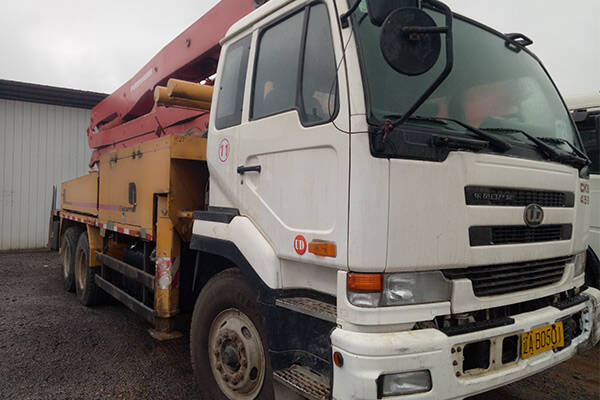

1. Putzmeister 36 meter concrete pump, UD chassis (belongs to Nissan, 3 axle x-leg, 4 booms, high working stability.

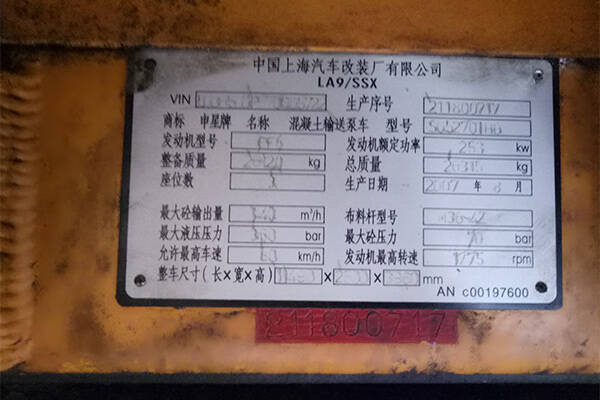

2. The manufacture Date is August of the year 2007.
3. Working condition and regular work. Equipment evaluation and maintenance.
4. Remanufacturing will be carried out to ensure that every product is in good condition and that there must be no faults to the product when leaving the factory so as to reduce the working pressure and cost of customers.
A used Putzmeister concrete boom pump is a machine which uses the pressure to transfer the concrete continuously along the pipeline. It is composed of pump body and conveying pipe. According to the structure form, it is divided into piston type, squeeze type and hydraulic diaphragm type. The pump body is mounted on the chassis. Equipped with retractable or folded placing booms, the pump truck is constituted.
Used Putzmeister 36M Concrete Boom Pump
| Item | Unit | No. | |
|---|---|---|---|
| Max. Theorem. output (High pressure/low pressure) | m3/h | 120/70 | |
| Max. Theorem. concrete output Pressure (High pressure/low pressure) | MPa | 11./7 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency (High pressure/low pressure) | min-1 | 13/22 | |

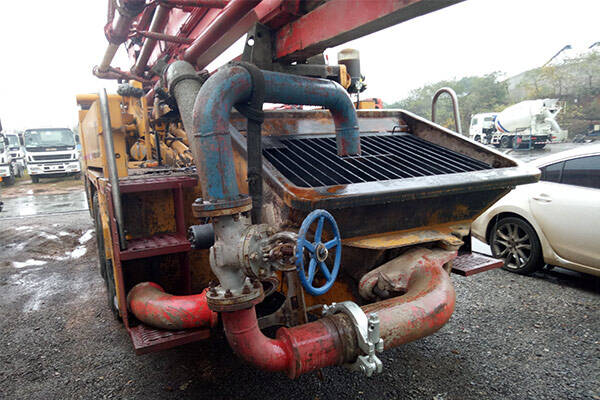

| Hopper capacity | L | 550 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | Open | ||
| Distribution valve | S tube | ||
| Oil cylinder diameter.×stroke | mm | φ130×2100 | |
| Concrete cylinder diameter.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | Wind cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Boom section | Structure type | 37-4RZ | |
| Placing depth | m | 37 | |
| Max. horizontal distance | m | 33 | |
| Max. placing depth | m | 24.7 | |
| Slewing angle | ±270° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of oping placing boom | mm | 8300 | |
| outriggers span（front×rear×side） | mm | 6200×7235×6980 | |
| Chassis $ Pump unit | Chassis No. | Actros3341 | |
| Wheelbase | mm | 4500 | |
| Engine No. | OM501LA | ||
| Engine power rating | kW | 300 | |
| Emission standard | Euro Ⅲ | ||
| Dimension(Length×width×height) | mm | 11910×2500×4000 | |
| Others | lubricating system | Energy saving type automatic lubrication | |
| Hydraulic fuel tank capacity | L | 780 | |
| Control system | Manual+remote control | ||
| Max.pressure of Pressure water tank | MPa | 7 | |
| Water tank capacity | L | 600 | |
| Concrete pipe cleaning mode | Water cleaning |
